Indexing Table and Rotating Satellites

Indexing Table and Rotating Satellites
  • Machanical Description
  • Film

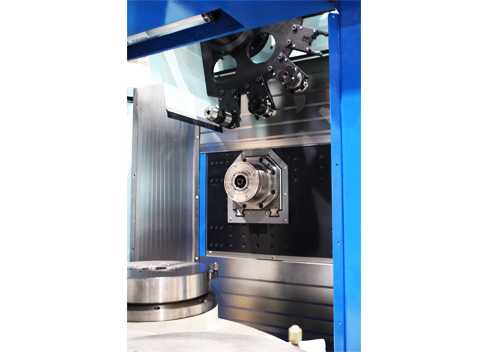

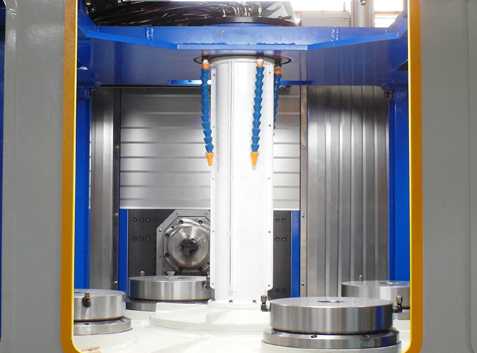

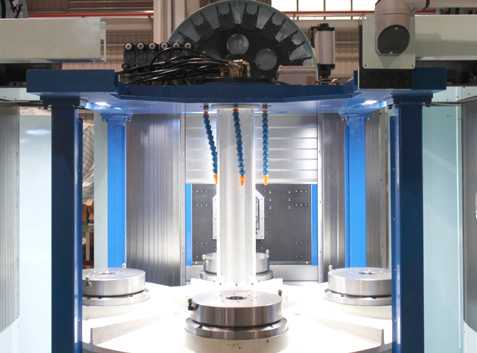

The machine designs work area at indexing table and rotating satellites.

Each rotating satellite can be adjusted rotational angle independently.

* The machining center equips with 4 rotating satellites, 3 sets of tool magazine and 3 sets of main spindles.

  Each tool magazine has a capacity of 10 pcs of tools.

* Each spindle has X-Y-Z stroke and can plan the operations independently.

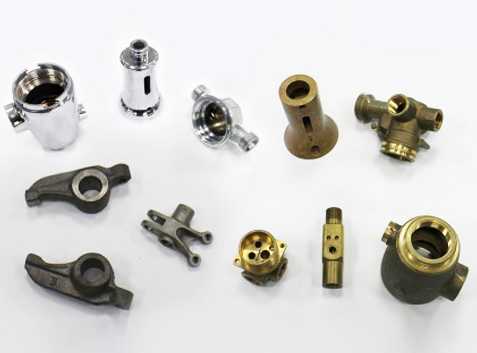

* The machining center is available for special or standard shape of workpiece.

  On the same surface, it can do drilling, milling, tapping and oval-shaped.

* Kai Hung Machinery’s indexing table and rotating satellites machining center will have high efficiency

  as 5 sets of machining centers.
